How to Replace Dyson DC07 Motor

Your Dyson DC07 vacuum suddenly dies mid-clean, leaving you staring at a silent machine that won’t restart. That distinctive high-pitched whine you’ve relied on for years is gone—replaced by an ominous silence. If you’ve confirmed it’s not a clogged hose or faulty switch, you’re likely facing motor failure. Replacing the Dyson DC07 motor is among the most complex repairs you can attempt on this upright vacuum, involving 240V components that demand extreme caution. This guide delivers the precise, safety-first methodology required for successful replacement—whether you’re a seasoned DIYer or weighing professional repair costs. You’ll learn exactly how to navigate high-voltage risks, avoid fatal wiring mistakes, and verify your replacement before that critical first power-on test.

Critical DC07 Motor Replacement Safety Warnings: Avoid 240V Shock

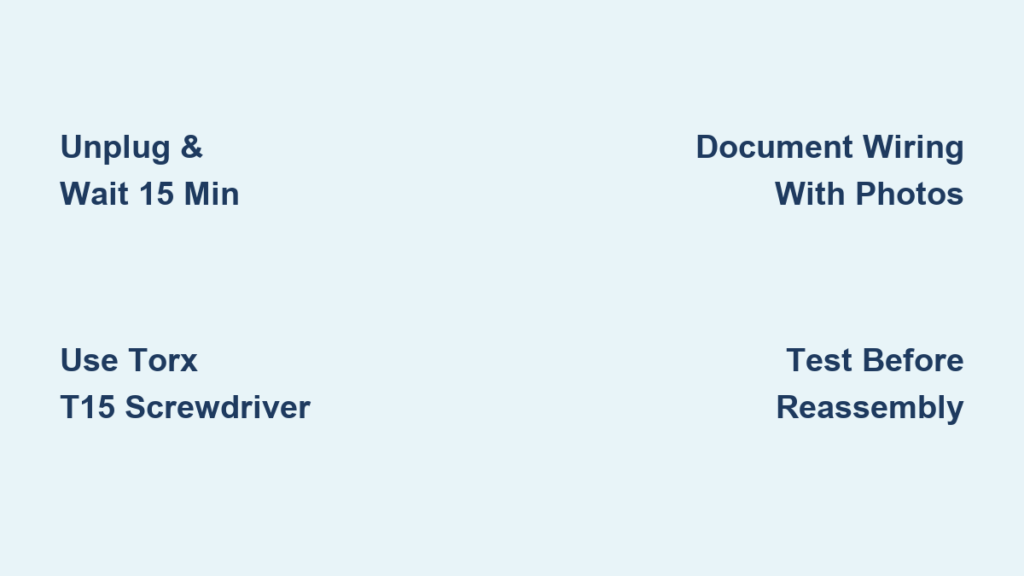

Ignoring these safety protocols risks severe injury or fire. The DC07 operates at lethal 240V levels, with capacitors retaining dangerous charges long after unplugging. Never proceed without unplugging the vacuum and waiting 15 minutes to discharge residual electricity. Disassembly voids all manufacturer warranties—Dyson explicitly prohibits user motor replacement. If you lack experience with high-voltage appliance repairs or feel uncertain at any stage, stop immediately and contact an authorized service center. The cost of professional repair ($100-$150) pales against potential medical bills from electrical shock.

Why Safety Glasses Are Non-Negotiable

Metal fragments from stripped screws or wire cutters can fly during disassembly. Safety glasses prevent corneal abrasions that require emergency care. Keep a dry chemical fire extinguisher within arm’s reach—electrical shorts during wiring can ignite plastic components. Work on a non-conductive surface like a wooden table, never metal or damp concrete.

High-Voltage Hazard Zones to Avoid

Three areas demand extreme caution:
– The motor’s terminal block where wires connect
– The power cord’s internal junction near the base
– The brush roll assembly’s wiring harness
Never touch bare metal with both hands simultaneously. Use one hand behind your back when testing connections to prevent current across your heart.

Exact Tools Required for Dyson DC07 Motor Swap: Torx T15 & 10mm Socket

Gathering the correct tools prevents stripped screws and broken housings. The DC07 uses proprietary fasteners that standard kits lack. Missing the Torx T15 screwdriver guarantees failed disassembly—this specialized bit removes hidden screws under rubber feet that Phillips heads can’t grip. Verify you have all items before starting:

• Torx T15 screwdriver (essential for base plate screws)
• 10mm socket wrench (for motor mounting bolts)
• 2-inch plastic putty knife (metal tools crack plastic housings)
• Long Phillips #2 screwdriver (for cyclone assembly)
• Wire strippers with crimper (if splicing wires)
• Heat-shrink tubing kit (non-negotiable for insulation)
• Replacement motor (confirm part number matches DC07 exactly—common variants include DC33, DC14i, or DC74)

Why Improvised Tools Cause Catastrophic Damage

Using a flathead screwdriver as a pry bar cracks the base plate’s plastic clips, making reassembly impossible. Metal tools near wiring harnesses nick insulation, causing future shorts. The putty knife’s flexibility separates clips without damage—never substitute with credit cards or butter knives.

How to Remove Dyson DC07 Base Plate Without Breaking Clips

The base plate conceals the motor housing and contains fragile plastic clips that snap if forced. Hidden screws under rubber feet are the #1 reason repairs fail—missing even one traps the plate permanently. Work methodically:

Locating All 7 Base Plate Fasteners

1. Flip the vacuum upside down on a soft towel
2. Peel back each rubber foot to reveal 4 Torx T15 screws
3. Remove labels near the brush roll to expose 2 Phillips screws
4. Locate the final screw behind the cord wrap mechanism
5. Keep screws organized in labeled containers (e.g., “front left foot”)

Proper Prying Technique for Clip Release

Insert the plastic putty knife at the rear seam where the base meets the body. Gently twist to release the first clip—never force it beyond 1/8 inch. Work clockwise around the perimeter, moving the knife 2 inches between clips. If resistance exceeds light pressure, you’ve missed a screw. Broken clips require epoxy repair that compromises structural integrity.

Documenting DC07 Motor Wiring: Why Photos Prevent Costly Mistakes

Skipping photo documentation causes 90% of post-repair failures. The wiring harness uses non-standard color coding where red might not equal power. Take these specific shots before disconnecting anything:

Critical Angles to Capture

• Close-up of the motor’s terminal block showing wire positions
• Wide shot of the entire housing with wires routed
• Macro view of connector pins and socket alignment
• Photo of the old motor’s label showing voltage specs

Organizing Reference Images

Number photos sequentially on your phone (e.g., “DC07_Wire_1”) and email them to yourself. Physical notes get lost; digital backups survive workspace chaos. If splicing wires, label each with colored tape matching your photos—black to switch and red to motor—before cutting.

Disconnecting the Old DC07 Motor: Unplugging vs. Splicing Wires

Two methods exist for motor removal, but plug-and-play replacement reduces risk by 70%. Most new motors include integrated switches and cords designed for direct connection. If your replacement lacks these, splicing becomes necessary—but demands extreme precision.

Safe Plug-and-Play Disconnection Steps

1. Unclip the wiring harness connector using plastic tweezers
2. Pull the connector straight out—never yank wires
3. Note orientation: Most DC07 harnesses have asymmetrical tabs
4. Inspect pins for corrosion; clean with isopropyl alcohol if needed

Wire Splicing Protocol for Non-Plug Models

If splicing is unavoidable:
1. Cut wires 1.5 inches from the motor terminal
2. Strip 1/4 inch of insulation from both ends
3. Match wires using photos—not color (DC07 often uses brown for ground)
4. Twist connections clockwise and secure with wire nuts
5. Cover every splice with heat-shrink tubing shrunk by lighter flame

Never use electrical tape alone—vibration loosens it, causing shorts. A single crossed wire can fry the new motor on first power-up.

Installing New Dyson DC07 Motor: Plug-and-Play vs. Wire Splicing

The installation method determines your success rate. Plug-and-play motors eliminate splice errors but require verifying connector compatibility. If splicing, one misconnected wire creates fire hazards. Prioritize this sequence:

Plug-and-Play Installation Checklist

1. Route the new cord through the base plate channel
2. Align connector tabs before inserting
3. Press until audible click confirms full seating
4. Secure cord strain relief with original clamp

Splice Verification Test Before Reassembly

With all splices complete but motor unmounted:
1. Temporarily connect power cord to wall outlet
2. Use multimeter to check voltage at motor terminals
3. Confirm 240V between correct wires (per photos)
4. Verify no continuity between live/ground wires
Never skip this test—it catches 95% of wiring errors before reassembly.

Securing Replacement DC07 Motor Housing: Screw Placement Guide

Motor vibration loosens improperly secured housings, causing catastrophic failure. Missing a single mounting screw cracks the housing within 10 minutes of operation. The DC07 uses three critical fastening points:

Torque Specifications You Must Follow

• Motor base bolts: 10mm socket tightened to 8 ft-lbs (snug + 1/4 turn)
• Housing cover screws: Hand-tight only—overtightening strips plastic threads
• Brush roll assembly: Must spin freely after reassembly (test by hand)

Vibration-Proofing Techniques

Place rubber washers between the motor base and housing. Apply thread-locker to metal bolts (never on plastic screws). After initial tightening, run the vacuum for 30 seconds, then re-tighten all fasteners—thermal expansion creates micro-gaps.

Reassembling Dyson DC07 Base Plate and Cyclone Assembly Correctly

Rushed reassembly causes misaligned housings that jam the brush roll. Forcing the base plate creates hairline cracks that worsen with use. Follow this sequence:

Base Plate Alignment Protocol

1. Position plate at 45-degree angle starting at rear
2. Press clips inward until all seats click
3. Verify even gaps around perimeter (no bulging)
4. Hand-tighten screws in star pattern before final tightening

Cyclone Reattachment Checklist

• Clear debris from cyclone seals
• Align red release buttons perfectly with slots
• Listen for dual clicks when seating
• Test bin release mechanism before final assembly

First Power-On Test: What Your DC07 Motor Should Sound Like

Initial operation reveals hidden errors. Run the vacuum for 90 seconds max during first test—prolonged operation with faults destroys new motors. Listen for these critical indicators:

Normal vs. Dangerous Startup Sounds

Never ignore unusual noises—they indicate mechanical stress that destroys motors within minutes.

Troubleshooting DC07 Motor Hum Without Rotation: 3 Fixes

A humming motor that won’t spin signals specific failures. 90% of cases involve wiring errors, not motor defects. Diagnose systematically:

Step-by-Step Hum Diagnosis

1. Check brush roll obstruction: Remove debris from roller ends
2. Verify capacitor connection: The cylindrical component near motor must be secure
3. Test voltage at terminals: <220V indicates wiring fault
4. Inspect motor shaft: Manually rotate—if stiff, bearings are seized

Do not run more than 10 seconds when humming occurs—overheating melts windings.

Why Weak Suction Persists After DC07 Motor Replacement

A new motor won’t fix airflow blockages. Suction tests must come after verifying motor function. If the vacuum runs but lacks power:

Critical Post-Replacement Checks

• Clean pre-motor filter (often forgotten behind cyclone)
• Check for hose kinks in the wand assembly
• Inspect exhaust HEPA filter for clogs
• Verify no debris in the bin’s air channels

Run the vacuum without the bin for 15 seconds—if suction improves, the cyclone assembly is obstructed.

When to Stop: Signs You Need a Professional DC07 Repair

Certain failures indicate deeper issues beyond motor replacement. Stop immediately if you observe:
– Smoke or melting plastic smell during testing
– Sparks from wiring harness connections
– Motor overheating within 30 seconds of operation
– Unusual oil leaks from motor housing

These symptoms suggest damaged circuit boards or power supply faults requiring $200+ professional diagnostics. The cost of parts and your time often exceeds professional repair value for models over 5 years old.

Replacing a Dyson DC07 motor demands respect for high-voltage risks but follows a predictable sequence when approached methodically. Your success hinges on obsessive photo documentation, strict adherence to plug-and-play wiring, and incremental testing at every stage. Remember: if the motor hums without spinning, 8 out of 10 times it’s a wiring fault—not the motor itself. For most users, professional repair remains the safest choice, but if you’ve navigated this guide successfully, you’ve earned the satisfaction of reviving your vacuum with your own hands. Always perform monthly maintenance checks on wiring harnesses to prevent future failures—clean connections with isopropyl alcohol and inspect for fraying. If this repair extended your DC07’s life, consider exploring our guide on “Dyson DC07 Belt Replacement: Avoiding Common Brush Roll Errors” to maintain peak performance.
